Endless Felt Belts
Non-Marking Conveyor Solutions for Aluminum Extrusion
CALM endless felt belts provide smooth, non-marking profile conveying throughout the aluminum extrusion process. Manufactured without seams, they help reduce scratches, improve surface finish, and deliver reliable performance across different temperature zones.
Why Choose CALM Endless Felt Belts?
Designed for smooth, non-marking conveying, CALM endless felt belts help protect aluminum profiles while delivering stable performance and long service life.
Non-Marking Conveying
The endless construction eliminates stitched joints that may create uneven contact, helping protect aluminum profiles from scratches and conveying marks.
Reliable High-Temperature Performance
Different felt materials are available for ultra-high, high, medium, and low-temperature conveying applications.
Excellent Wear Resistance
Premium fibers provide long service life and reliable performance under continuous operation.
Stable Conveyor Performance
Accurate dimensions and consistent construction help maintain stable conveying and reduce production interruptions.
Low Fiber Shedding
Engineered to minimize fiber contamination and help maintain clean profile surfaces.
Custom Manufacturing
Available in customized widths, lengths, thicknesses, and materials for different extrusion lines.
Why Endless Construction Matters
A smooth belt creates a smoother profile.
CALM endless felt belts are manufactured without joints, helping reduce conveying marks, improve surface protection, and deliver more stable performance throughout the extrusion process.
Felt Belt Series

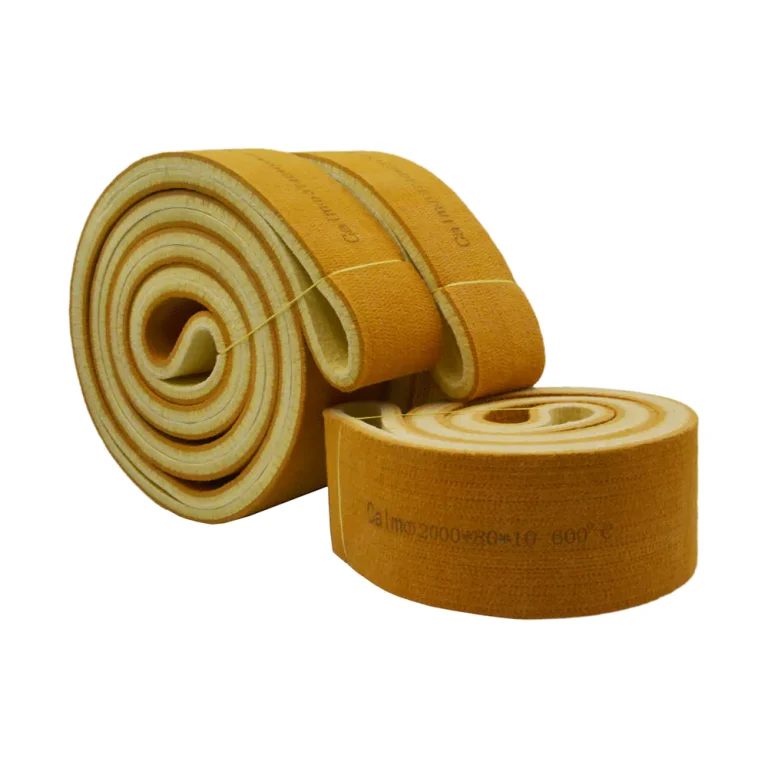

PBO Felt Belt
PBO + Kevlar + Nomex Base Fabric
Belt-PKN
- Max. Temperature
- Color
- 600°C
- Brown + Yellow

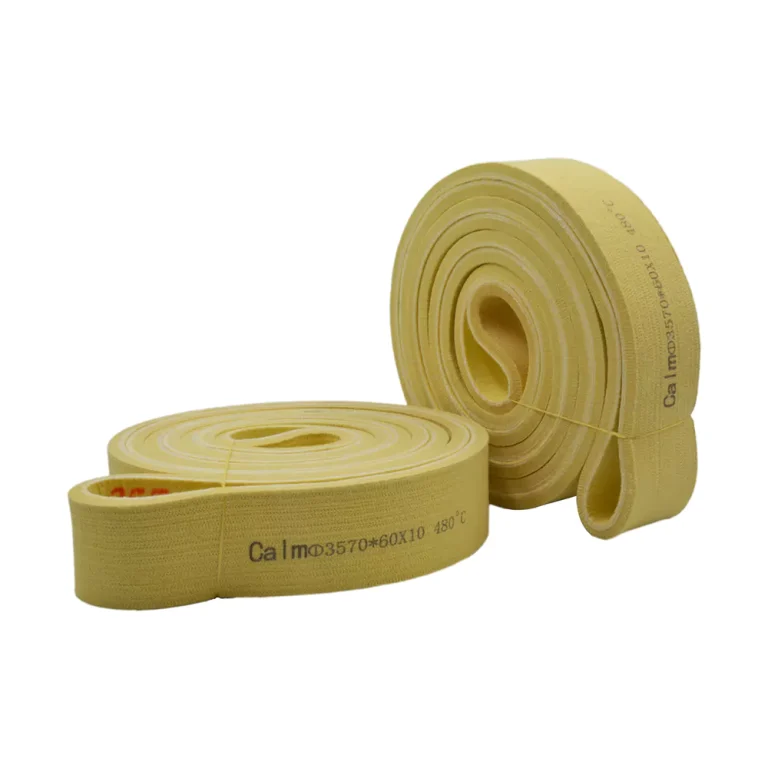

Kevlar Felt Belt
Kevlar + Nomex Base Fabric
Belt-KN
- Max. Temperature
- Color
- 480°C
- Yellow

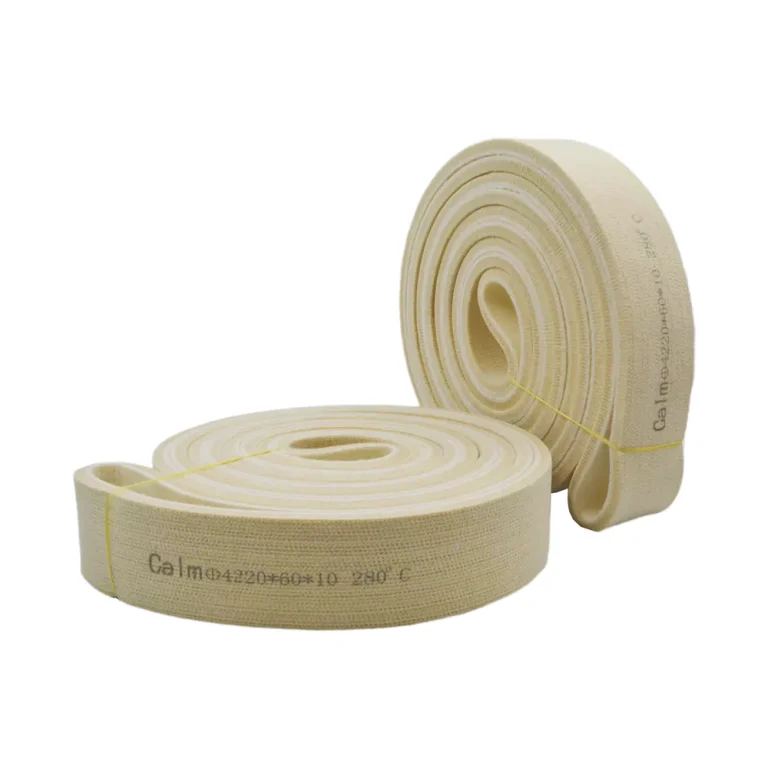

Nomex Felt Belt
100% Nomex + Nomex Base Fabric
Belt-NNP
- Max. Temperature
- Color
- 280°C
- Off-White

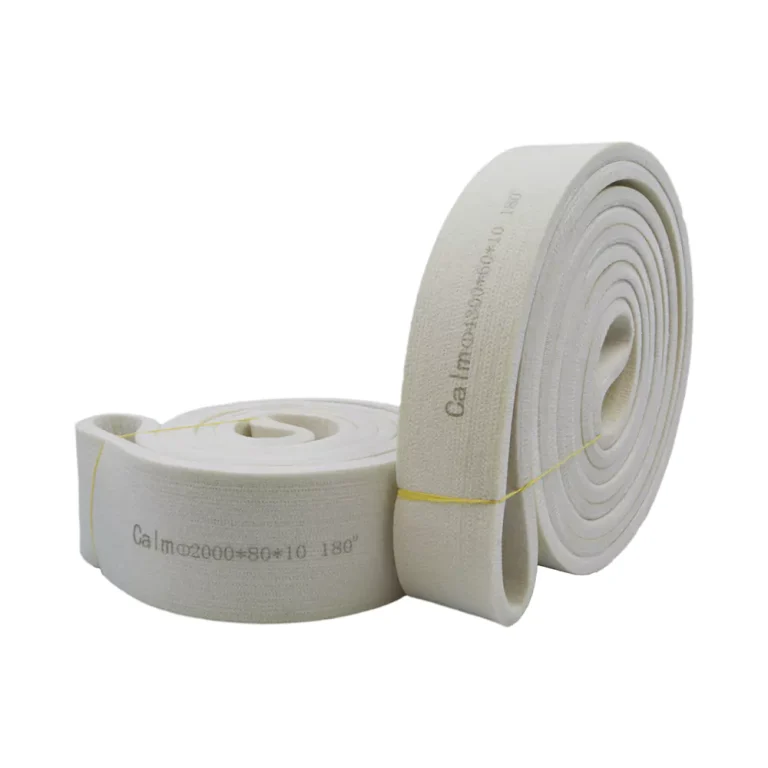

Polyester Felt Belt
100% Polyester + Polyester Base Fabric
Belt-KN
- Max. Temperature
- Color
- 180°C
- White
Choose the Right Felt Belt for Every Temperature Zone
Different stages of the extrusion process require different heat-resistant materials.
Material | Max. Temperature | Recommended Application |
PBO | Up to 600°C | Ultra-high-temperature conveying immediately after extrusion |
Kevlar | Up to 480°C | High-temperature conveying zones |
Nomex | Up to 280°C | Medium-temperature profile transfer |
Polyester | Up to 180°C | Finished profile handling and low-temperature conveying |
Not sure which material is right for your production line? Our engineers can recommend the most suitable solution based on your operating temperature and conveying conditions.
Technical Specifications
Material | Max. Temperature | Recommended Application |
PBO | Up to 600°C | Ultra-high-temperature conveying immediately after extrusion |
Kevlar | Up to 480°C | High-temperature conveying zones |
Nomex | Up to 280°C | Medium-temperature profile transfer |
Polyester | Up to 180°C | Finished profile handling and low-temperature conveying |
Typical Applications
CALM endless felt belts are widely used throughout aluminum extrusion production, including:
- Lead-out Conveying
- Run-out Tables
- Cooling & Profile Transfer
- Stretching Lines
- Finished Profile Handling
- Stacking Systems
- Powder Coating Lines
- Anodizing Lines
Custom Manufacturing
Every extrusion line operates under different production conditions.
CALM provides customized felt belts based on:
·Material selection
·Belt width
·Belt length
·Belt thickness
·Operating temperature
·Production line requirements
Whether you need a standard replacement belt or a fully customized solution, our engineering team is ready to help.
FAQs
The appropriate material depends on your operating temperature and the position of the belt within the extrusion line. PBO is recommended for ultra-high-temperature applications, while Kevlar, Nomex, and Polyester are suitable for progressively lower temperature zones.
Endless belts eliminate stitched joints that may create uneven contact, helping improve conveying stability and reduce surface marks on aluminum profiles.
Yes. We manufacture belts in customized widths, lengths, thicknesses, and materials to match different extrusion equipment and production requirements.
The recommended thickness depends on profile weight, conveying equipment, and production conditions. Our team can help you select the most suitable specification.
