Felt Spacer Sleeves
Soft Covers for Aluminum Profile Stacking Bars
CALM felt spacer sleeves are designed to cover stacking bars used between layers of aluminum profiles, helping reduce pressure marks, scratches, and surface damage during aging, storage, and transportation.
Why Stacking Bars Need Protection
During aging and storage, aluminum profiles are usually stacked in multiple layers with spacer bars placed between each layer.
If bare wood or metal bars contact the profile surface directly, they may leave visible pressure marks or scratches, especially on anodized, polished, or electrophoretic finishes.
Felt spacer sleeves create a soft contact surface between the spacer bar and the aluminum profile, helping maintain surface quality throughout stacking and handling.
Material Options

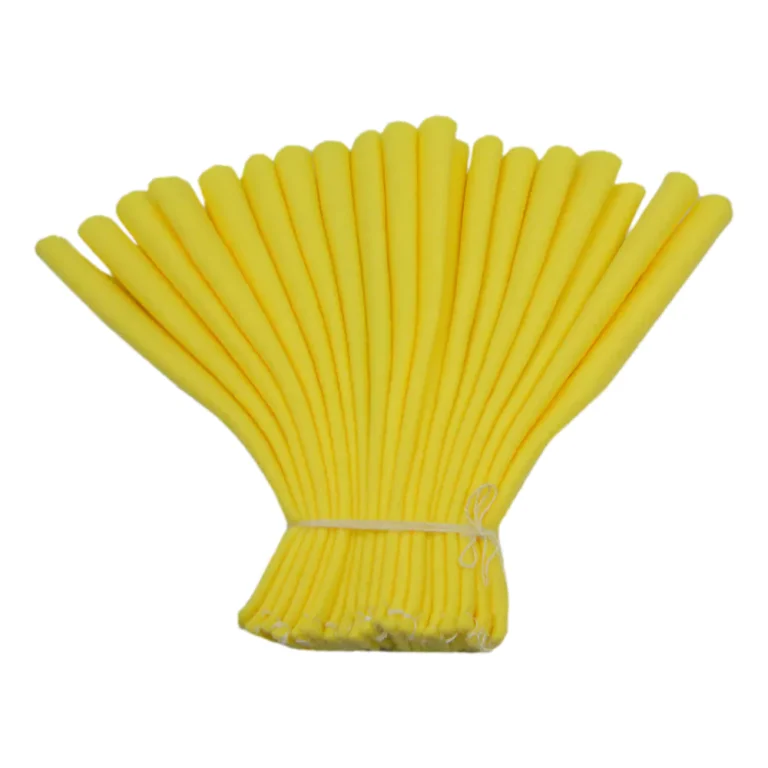

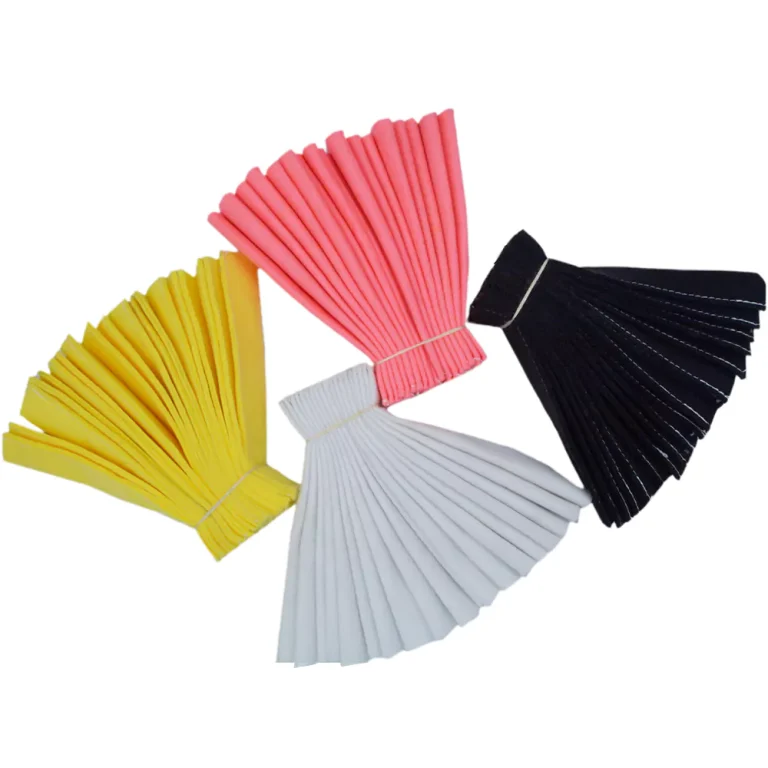

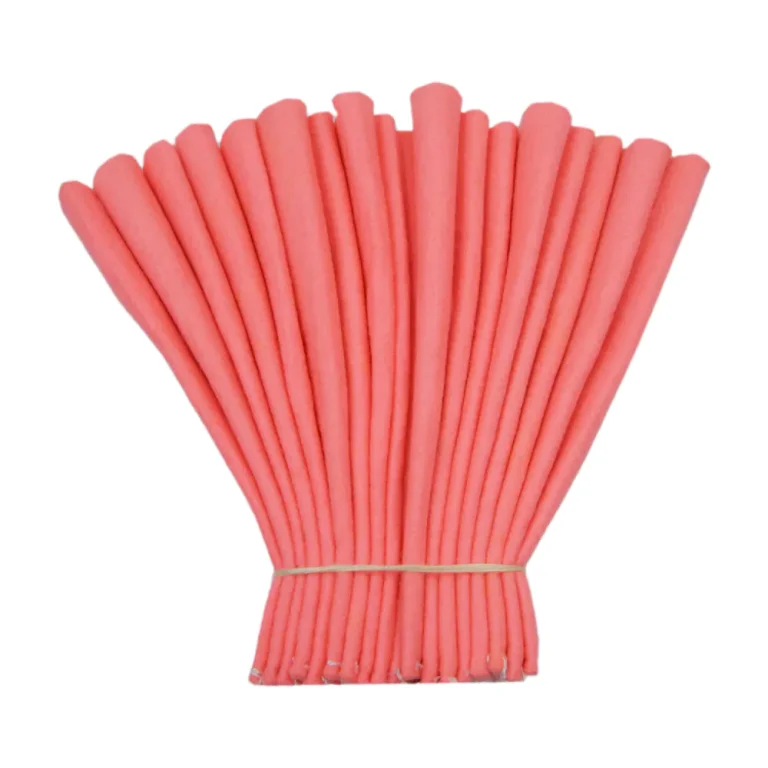

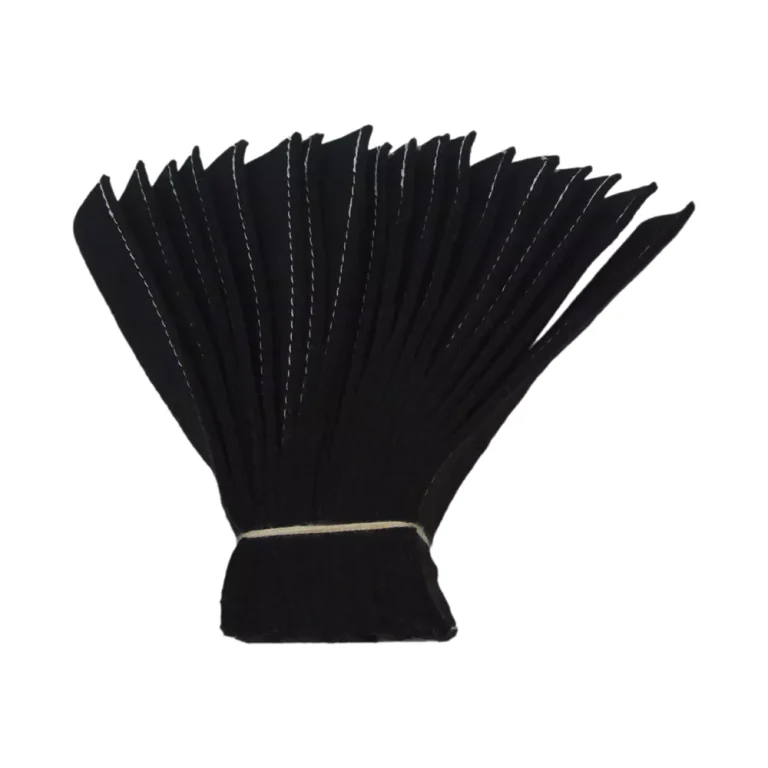

Polyester Felt Spacer Sleeve
For room-temperature stacking and finished profile handling.
Material: 100% Polyester
Max. Temperature: 180°C
Available Colors: Black / Yellow / White / Red / Green / Blue
Nomex Felt Spacer Sleeve
For higher-temperature stacking before profiles are fully cooled.
Material: 100% Nomex
Max. Temperature: 280°C
Available Colors: Natural
Built to Fit Your Spacer Bars
CALM spacer sleeves are manufactured according to the dimensions of the spacer bars used in your stacking system.
To produce the correct size, we typically require:
- Spacer bar length
- Spacer bar width
- Spacer bar height
This ensures a secure fit and consistent protection across the entire stacking area.
Available Specifications
Item | Specification |
Thickness | 1.3 / 1.6 / 1.8 / 2.0 / 3.0 mm |
Density | 230–1000 g/m² |
Length | Custom |
Bar Size | Custom Manufactured |
Why Manufacturers Choose CALM Spacer Sleeves
- Soft contact surface for stacked profiles
- Helps reduce pressure marks and scratches
- Available for different temperature conditions
- Custom manufactured for your spacer bar dimensions
- Easy to install and replace
FAQs
It is used to cover stacking bars placed between layers of aluminum profiles, creating a soft contact surface during aging, storage, and transportation.
Polyester is suitable for room-temperature stacking and finished profiles, while Nomex is recommended when profiles are still relatively hot.
Yes. They are manufactured according to the dimensions of your spacer bars.
Yes. Multiple thickness options are available depending on the required cushioning and spacing.
