Felt Rollers
Non-Marking Support for High Surface Finish Aluminum Profiles
CALM felt rollers provide smooth, stable profile support throughout the aluminum extrusion process, helping reduce scratches, pressure marks, and surface contamination while improving conveying reliability.
Why Surface Contact Matters
Throughout the extrusion process, aluminum profiles remain in continuous contact with conveying rollers. If the roller surface is uneven, worn, or contaminated, even slight contact can affect the final surface finish.
CALM felt rollers provide a smooth contact surface that helps protect aluminum profiles while ensuring stable conveying across different production stages.
Why Choose CALM Felt Rollers?
Smooth Surface Contact
Provides uniform support to help reduce scratches, pressure marks, and friction during conveying.
No Fiber Shedding
Minimizes fiber contamination to help maintain clean aluminum surfaces.
Resin-Hardened Construction
Improves rigidity and dimensional stability for longer service life under continuous operation.
Custom Manufacturing
Available in multiple materials, diameters, and lengths to match different extrusion lines.
Built for High Surface Finish Aluminum Profiles
Surface quality becomes increasingly important for aluminum profiles with decorative or functional finishes. CALM felt rollers are specially designed for applications where even minor surface defects are unacceptable.
Recommended for
Anodized Aluminum Profiles
Electrophoretic Aluminum Profiles
Polished Aluminum Profiles
Powder-Coated Aluminum Profiles
Decorative Architectural Profiles
Felt Roller Series

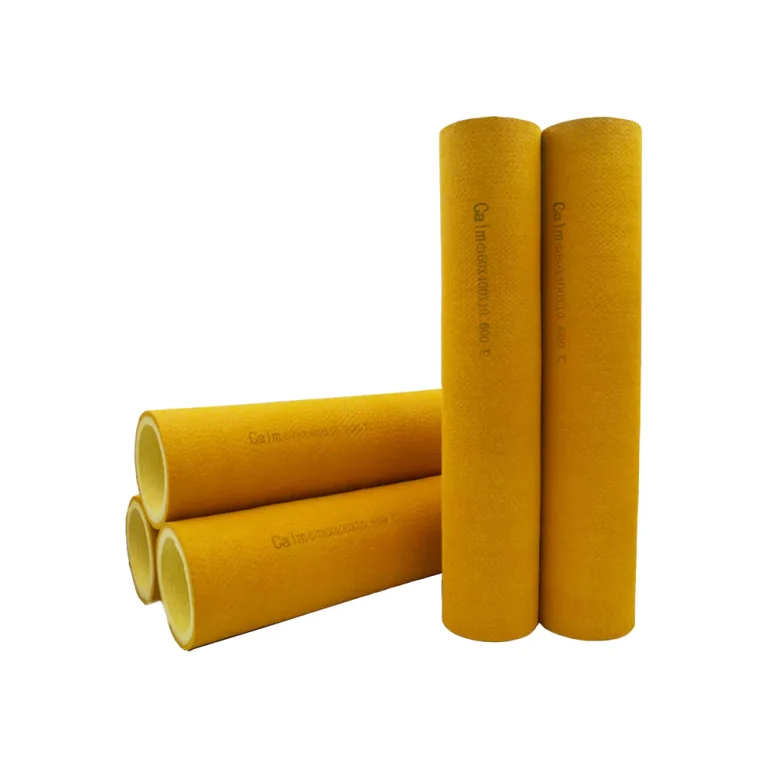

PBO Felt Roller
PBO + Kevlar
Roller-PK
- Max. Temperature
- Color
- 600°C
- Brown + Yellow
- Application
- Designed for ultra-high-temperature transfer before graphite replacement, helping reduce graphite marks on freshly extruded aluminum profiles.

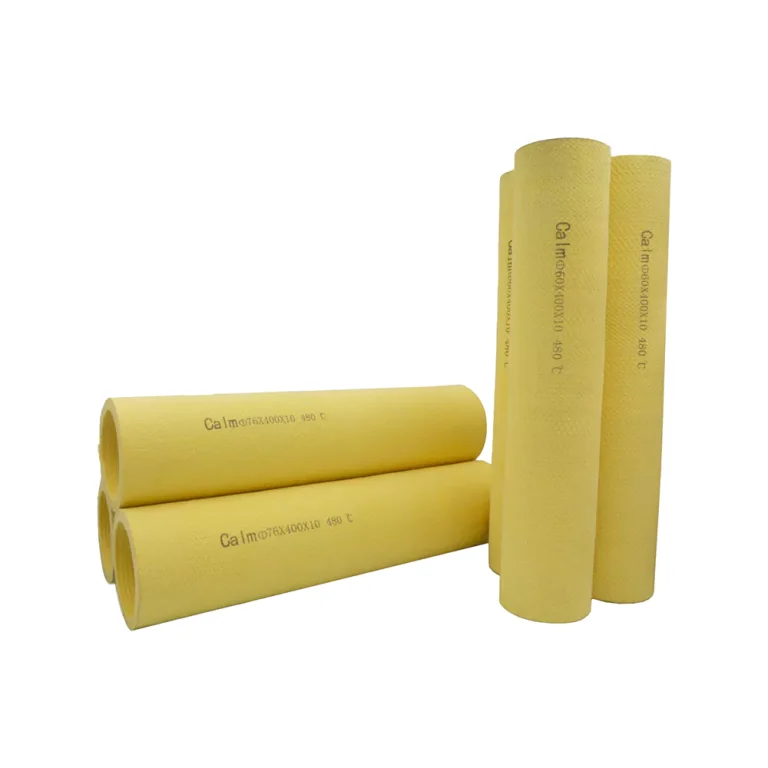

Kevlar Felt Roller
100% Kevlar
Roller-K
- Max. Temperature
- Color
- 480°C
- Yellow
- Application
- Designed for high-temperature conveying after extrusion, providing reliable profile support and excellent wear resistance.

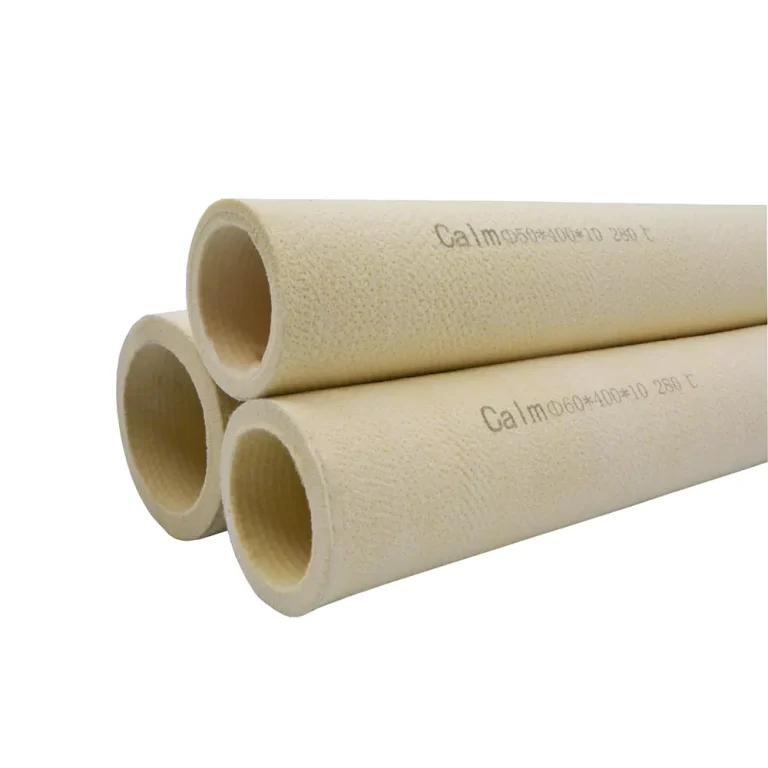

Nomex Felt Roller
100% Nomex
Roller-N
- Max. Temperature
- Color
- 280°C
- Beige
- Application
- Suitable for straightener output and medium-temperature conveying applications.
Polyester Felt Roller
100% Polyester
Roller-P
- Max. Temperature
- Color
- 180°C
- White
- Application
- Recommended for saw tables, finished profile transfer, and other low-temperature conveying applications.
Technical Specifications
Item | Specification |
Inner Diameter | 41–127 mm |
Length | Custom |
Material | PBO, Kevlar, Nomex, Polyester |
Surface Treatment | Resin Hardened |
Custom Sizes | Available |
Custom Manufacturing
Every extrusion line has different conveying requirements. CALM manufactures felt rollers according to your equipment specifications and operating conditions.
Customization Options:
·Inner Diameter
·Roller Length
·Felt Material
·Operating Temperature
·Application Position
FAQs
Material selection depends on the operating temperature and the roller's position within the production line. Our team can recommend the most suitable solution based on your application.
Resin hardening improves rigidity, wear resistance, and dimensional stability, helping extend roller service life.
Yes. We manufacture custom felt rollers in various diameters, lengths, and material combinations to match different extrusion lines.
They are particularly suitable for anodized, polished, electrophoretic, powder-coated, and other aluminum profiles requiring excellent surface quality.
